Safety Cruiser Vest – Mesh
£160.00 ex VAT Select options This product has multiple variants. The options may be chosen on the product page
-
£333.00 – £370.00 ex VAT

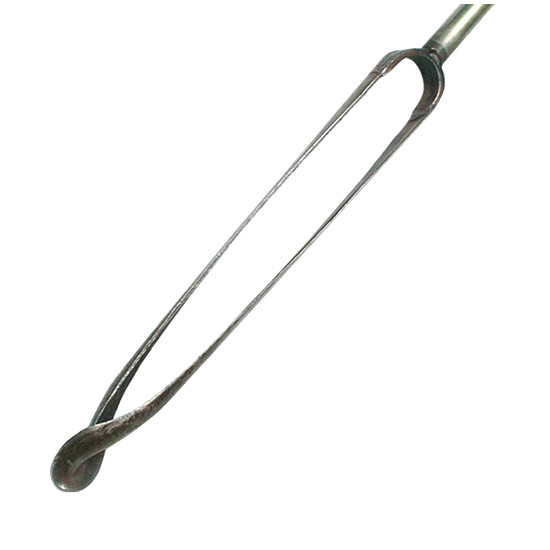

An Edelman auger head with a longer and narrower blade made for use with soft (clay) soils. Made from non toxic, tensile steel with a proven design for efficient use. The head can attached to an extension rod with bayonet coupling for rapid assembly. Available in various diameters, this head is an excellent all rounder for a multitude of sediment sampling projects.
Specifications:
Edelman soft soil auger head is an excellent soil sampling tool. The head design features very narrow blades with a narrow opening between them than other models. Ending in a moderately wide blunt twisted tip. Therefore, it is suitable for use in soft organic-based soils. The thin narrow blades and small opening between, hold more of the soft material, which prevents it from falling back into the core hole. Furthermore, it makes pulling up and removal of the material easier as well, which in turn produces a deeper hole for analysis.
The Edelman soft soil auger head production uses non-toxic steel with high tensile strength. This ensures that your soil samples will not incur contamination from the auger head. The tensile strength stands up to heavy workloads, additionally, it allows users to produce more torque through the auger when sampling. Though this is fairly easy with soft soils in comparison to clay-based or gravel-rich material.
The tool provides a proven design that results in optimal drilling and coring. This auger head attaches to the optional extension rods using a bayonet coupling. This results in quick, easy assembly and disassembly onsite. Meaning you have more time to perform sampling, rather than unpacking and packing back up. The head is available in various diameters to suit your particular project requirements.
Note, this product is only for the auger head itself. You will also require at least one extension rod and a T-bar handle to operate correctly. To view these items, please click, HERE.
